Manage your NVIDIA vGPU Drivers with the NVIDIA GPU Manager for VMware vCenter

 NVIDIA, NVIDIA vGPU, VDI, VMware, vSphere  5 Responses »
Jul 282023

NVIDIA GPU Manager

In May of 2023, NVIDIA released the NVIDIA GPU Manager for VMware vCenter. This appliance allows you to manage your NVIDIA vGPU Drivers for your VMware vSphere environment.

Since the release, I’ve had a chance to deploy it, test it, and use it, and want to share my findings.

In this post, I’ll cover the following (click to skip ahead):

  1. What is the NVIDIA GPU Manager for VMware vCenter
  2. How to deploy and configure the NVIDIA GPU Manager for VMware vCenter
    • Deployment of OVA
    • Configuration of Appliance
  3. Using the NVIDIA GPU Manager to manage, update, and deploy vGPU drivers to ESXi hosts

Let’s get to it!

What is the NVIDIA GPU Manager for VMware vCenter

The NVIDIA GPU Manager is an (OVA) appliance that you can deploy in your VMware vSphere infrastructure (using vCenter and ESXi) to act as a driver (and update) repository for vLCM (vSphere Lifecycle Manager).

In addition to acting as a repo for vLCM, it also installs a plugin on your vCenter that provides a GUI for browsing, selecting, and downloading NVIDIA vGPU host drivers to the local repo running on the appliance. These updates can then be deployed using LCM to your hosts.

In short, this allows you to easily select, download, and deploy specific NVIDIA vGPU drivers to your ESXi hosts using vLCM baselines or images, simplifying the entire process.

Supported vSphere Versions

The NVIDIA GPU Manager supports the following vSphere releases (vCenter and ESXi):

  • VMware vSphere 8.0 (and later)
  • VMware vSphere 7.0U2 (and later)

The NVIDIA GPU Manager supports vGPU driver releases 15.1 and later, including the new vGPU 16 release version.

How to deploy and configure the NVIDIA GPU Manager for VMware vCenter

To deploy the NVIDIA GPU Manager Appliance, we have to download an OVA (from NVIDIA’s website), then deploy and configure it.

See below for the step by step instructions:

Download the NVIDIA GPU Manager

  1. Log on to the NVIDIA Application Hub, and navigate to the “NVIDIA Licensing Portal” (https://nvid.nvidia.com).
  2. Navigate to “Software Downloads” and select “Non-Driver Downloads”
  3. Change Filter to “VMware vCenter” (there is both VMware vSphere, and VMware vCenter, pay attention to select the correct).
  4. To the right of “NVIDIA GPU Manager Plug-in 1.0.0 for VMware vCenter”, click “Download” (see below screenshot).

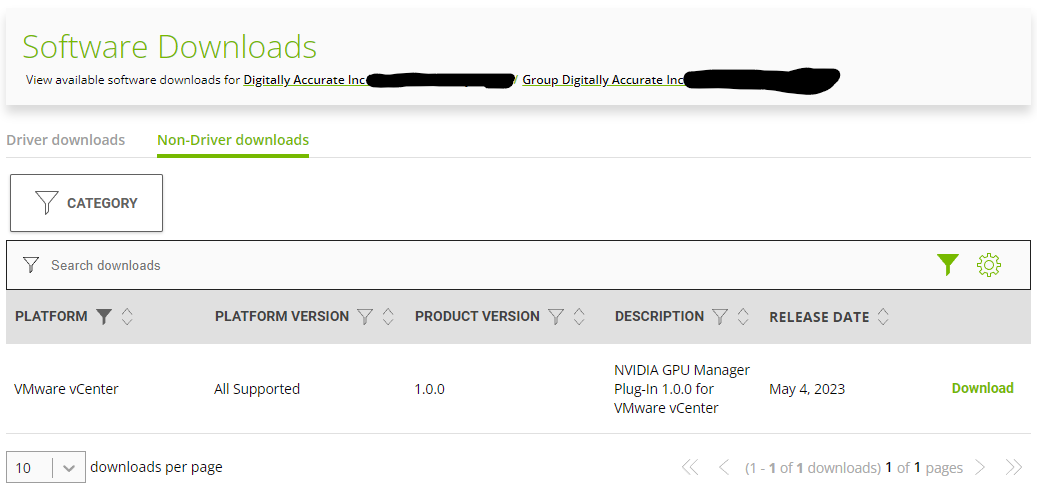

Screenshot of download link for NVIDIA GPU Manager for VMware vCenter
NVIDIA GPU Manager Download Page

After downloading the package and extracting, you should be left with the OVA, along with Release Notes, and the User Guide. I highly recommend reviewing the documentation at your leisure.

Deploy and Configure the NVIDIA GPU Manager

We will now deploy the NVIDIA GPU Manager OVA appliance:

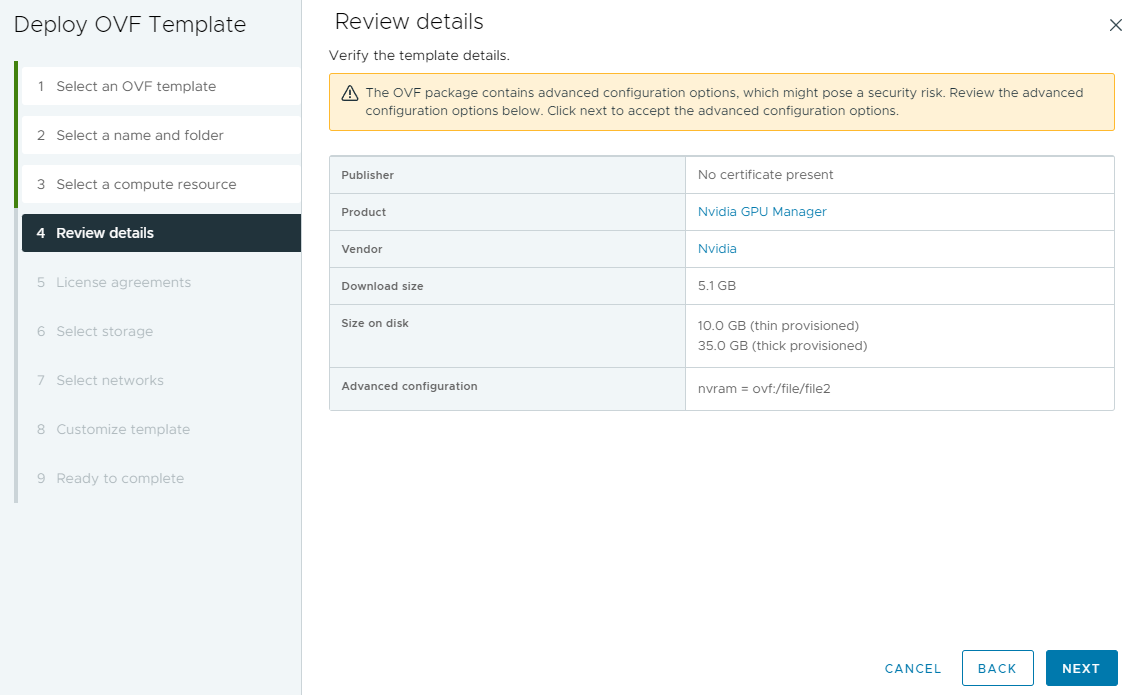

  1. Deploy the OVA to either a cluster with DRS, or a specific ESXi host. In vCenter either right click a cluster or host, and select “Deploy OVF Template”. Choose the GPU Manager OVA file, and continue with the wizard.NVIDIA GPU Manager OVA Deploy

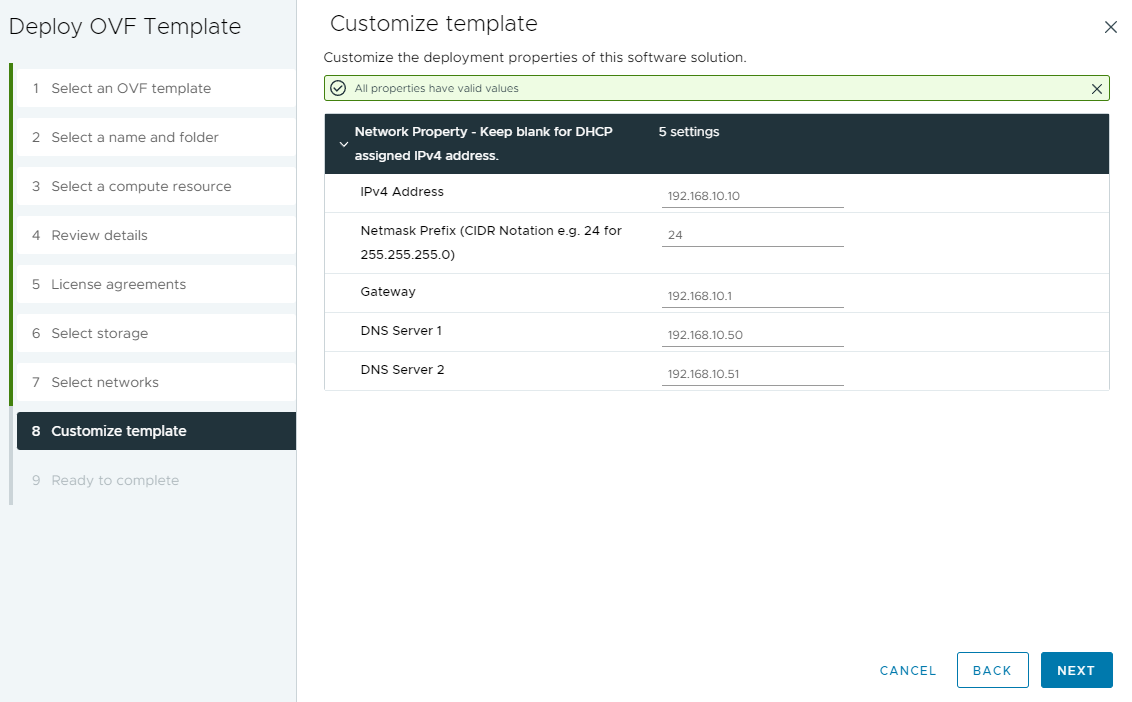

  2. Configure Networking for the Appliance
    • You’ll need to assign an IP Address, and relevant networking information.
    • I always recommend creating DNS (forward and reverse entries) for the IP.NVIDIA GPU Manager OVA Network Configuration
  3. Finally, power on Appliance.

We must now create a role and service account that the GPU Manager will use to connect to the vCenter server.

While the vCenter Administrator account will work, I highly recommend creating a service account specifically for the GPU Manager that only has the required permissions that are necessary for it to function.

  1. Log on to your vCenter Server
  2. Click on the hamburger menu item on the top left, and open “Administration”.

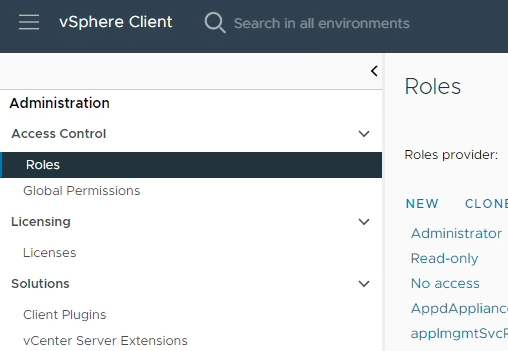

  3. Under “Access Control” select Roles. vCenter-Roles
  4. Select New to create a new role. We can call it “NVIDIA Update Services”.
  5. Assign the following permissions:
    • Extension Privileges
      • Register Extension
      • Unregister Extension
      • Update Extension
    • VMware vSphere Lifecycle Manager Configuration Priveleges
      • Configure Service
    • VMware vSphere Lifecycle Manager Settings Priveleges
      • Read
    • Certificate Management Privileges
      • Create/Delete (Admins priv)
      • Create/Delete (below Admins priv)
    • ***PLEASE NOTE: The above permissions were provided in the documentation and did not work for me (resulted in an insufficient privileges error). To resolve this, I chose “Select All” for “VMware vSphere Lifecycle Manager”, which resolved the issue.***
  6. Save the Role
  7. On the left hand side, navigate to “Users and Groups” under “Single Sign On”
  8. Change the domain to your local vSphere SSO domain (vsphere.local by default)
  9. Create a new user account for the NVIDIA appliance, as an example you could use “nvidia-svc”, and choose a secure password.
  10. Navigate to “Global Permissions” on the left hand side, and click “Add” to create a new permission.
  11. Set the domain, and choose the new “nvidia-svc” service account we created, and set the role to “NVIDIA Update Services”, and check “Propagate to Children”.
  12. You have now configured the service account.

Now, we will perform the initial configuration of the appliance. To configure the application, we must do the following:

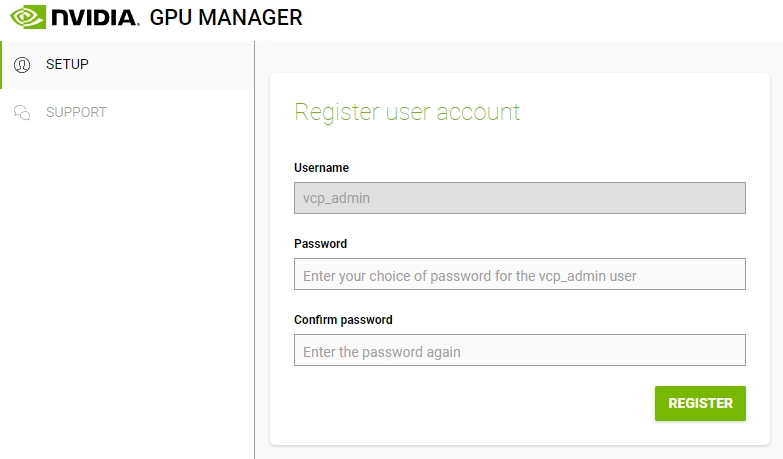

  1. Access the appliance using your browser and the IP you configured above (or FQDN) GPU Manager Account Creation
  2. Create a new password for the administrative “vcp_admin” account. This account will be used to manage the appliance.
    • A secret key will be generated that will allow the password to be reset, if required. Save this key somewhere safe.

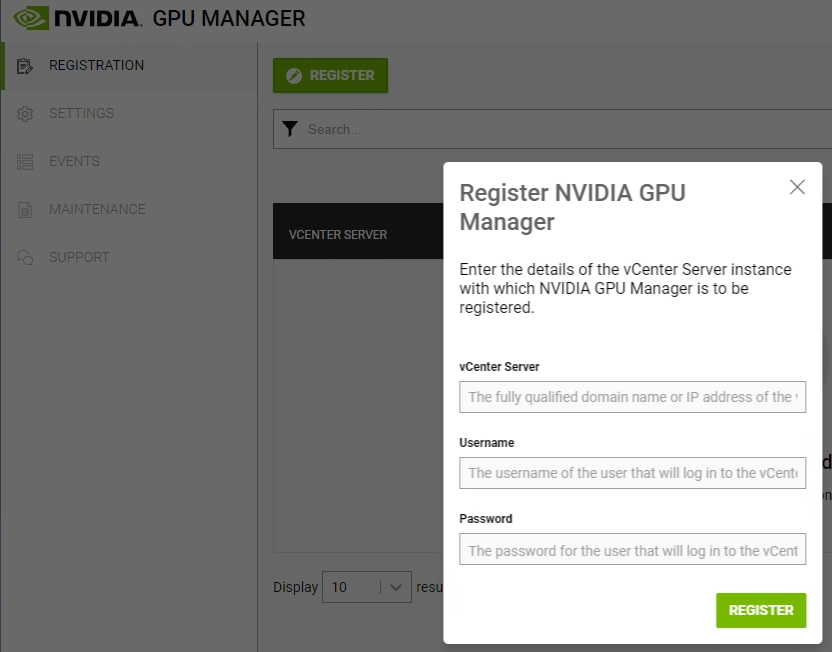

  3. We must now register the appliance (and plugin) with our vCenter Server. Click on “REGISTER”. NVIDIA GPU Manager Register
  4. Enter the FQDN or IP of your vCenter server, the NVIDIA Service account (“nvidia-svc” from example), and password.
  5. Once the GPU Manager is registered with your vCenter server, the remainder of the configuration will be completed from the vCenter GPU.
    • The registration process will install the GPU Manager Plugin in to VMware vCenter
    • The registration process will also configure a repository in LCM (this repo is being hosted on the GPU manager appliance).

We must now configure an API key on the NVIDIA Licensing portal, to allow your GPU Manager to download updates on your behalf.

  1. Open your browser and navigate to https://nvid.nvidia.com. Then select “NVIDIA LICENSING PORTAL”. Login using your credentials.
  2. On the left hand side, select “API Keys”.

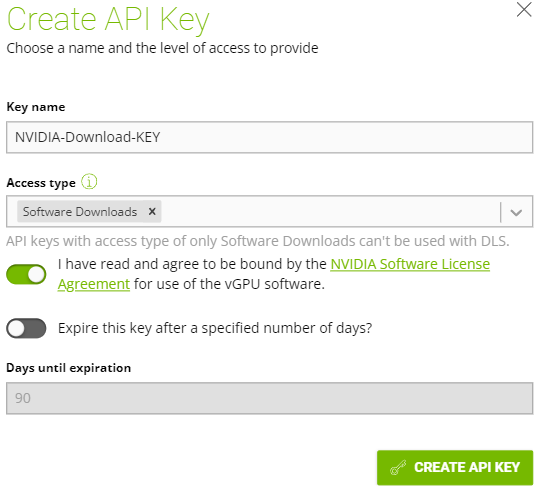

  3. On the upper right hand, select “CREATE API KEY”.
  4. Give the key a name, and for access type choose “Software Downloads”. I would recommend extending the key validation time, or disabling key expiration. NVIDIA Download API Create Key
  5. The key should now be created.
  6. Click on “view api key”, and record the key. You’ll need to enter this in later in to the vCenter GPU Manager plugin.

And now we can finally log on to the vCenter interface, and perform the final configuration for the appliance.

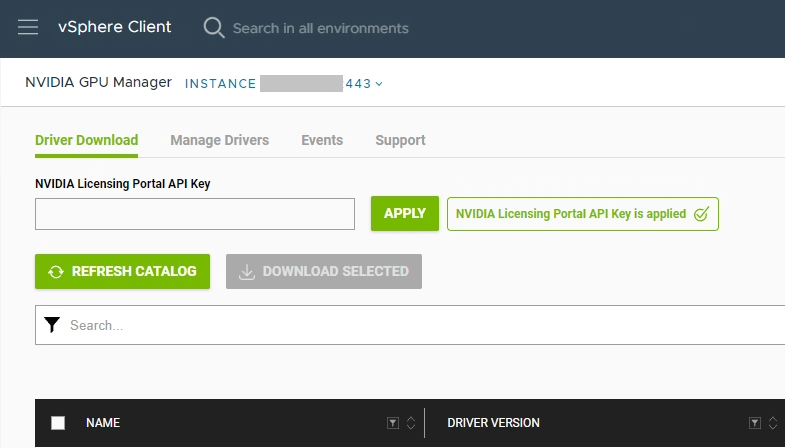

  1. Log on to the vCenter client, click on the hamburger menu, and select “NVIDIA GPU Manager”.
  2. Enter the API key you created above in to the “NVIDIA Licensing Portal API Key” field, and select “Apply”.
  3. The appliance should now be fully configured and activated. GPU Manager Activated API Key
  4. Configuration is complete.

We have now fully deployed and completed the base configuration for the NVIDIA GPU Manager.

Using the NVIDIA GPU Manager to manage, update, and deploy vGPU drivers to ESXi hosts

In this section, I’ll be providing an overview of how to use the NVIDIA GPU Manager to manage, update, and deploy vGPU drivers to ESXi hosts. But first, lets go over the workflow…

The workflow is a simple one:

  1. Using the vCenter client plugin, you choose the drivers you want to deploy. These get downloaded to the repo on the GPU Manager appliance, and are made available to Lifecycle Manager.
  2. You then use Lifecycle Manager to deploy the vGPU Host Drivers to the applicable hosts, using baselines or images.

As you can see, there’s not much to it, despite all the configuration we had to do above. While it is very simple, it simplifies management quite a bit, especially if you’re using images with Lifecycle Manager.

To choose and download the drivers, load up the plugin, use the filters to filter the list, and select your driver to download.

GPU Manager downloading vGPU Driver
NVIDIA GPU Manager downloading vGPU Driver

As you can see in the example, I chose to download the vGPU 15.3 host driver. Once completed, it’ll be made available in the repo being hosted on the appliance.

Once LCM has a changed to sync with the updated repos, the driver is then made available to be deployed. You can then deploy using baselines or host images.

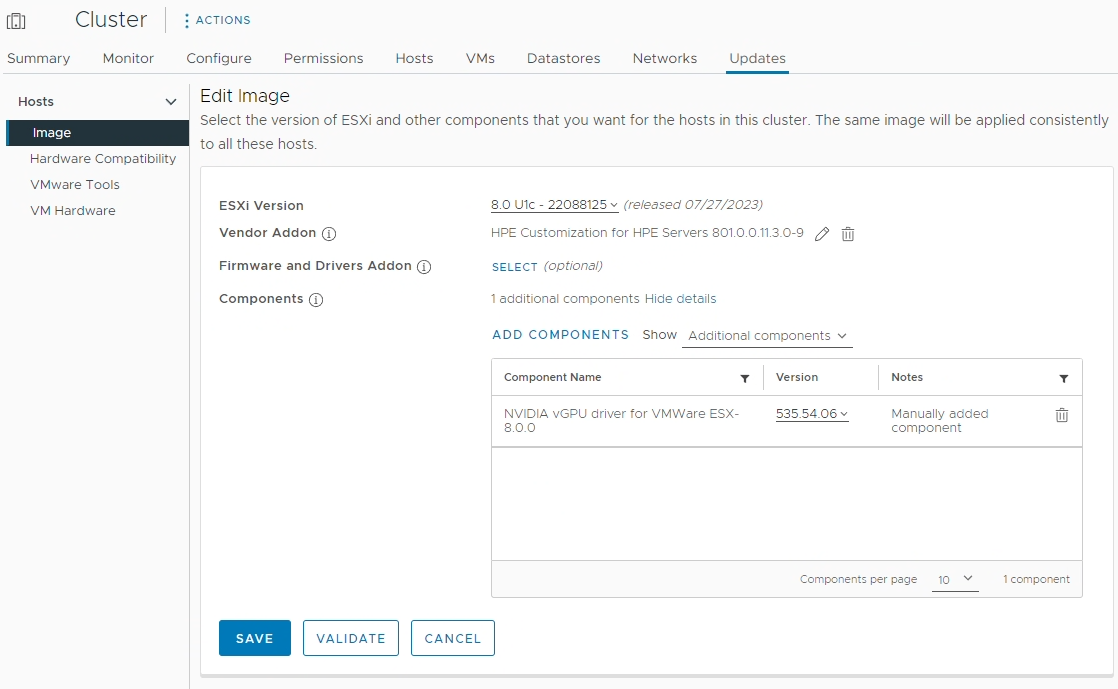

LCM Image Update with NVIDIA vGPU Driver from NVIDIA GPU Manager
LCM Image Update with NVIDIA vGPU Driver from NVIDIA GPU Manager

In the example above, I added the vGPU 16 (535.54.06) host driver to my clusters update image, which I will then remediate and deploy to all the hosts in that cluster. The vGPU driver was made available from the download using GPU Manager.

VMware vSphere VM placement rules

 ESXi, VMware, vSphere  No Responses »
Jul 252023


When it comes to virtualized workloads, one thing I commonly see overlooked in the design of the solution, is the placement of workloads. In this post, I want to cover VMware vSphere VM placement rules using the “VM/Host Rules” feature.

This is a feature that I commonly see overlooked and not configured, especially in smaller single cluster environments, however I’ve also seen this happen in very large scale environments as well.

Let’s cover the why, what, who, and how…

VM Workloads

While VMware vSphere does have a number of technologies built in for redundancy, load-balancing, and availability, as part of the larger solution we often find our workloads, specifically 3rd party platforms, with their own solutions that accomplish the same thing.

We need to identify which HA (High Availability) or redundancy solution to use, based on the application, service, and how it works.

For example, using VMware vSphere HA, or High Availability, if vCenter (and/or vCLS) detects a host goes offline, it can restart the workload on other online hosts. There is time associated with the detection and boot time, resulting in a loss of service during this period.

Third party solutions often have their own high availability or redundancy built in to the solution, such as Microsoft Active Directory. In this case with a standard configuration, at any time, any domain controller can respond to a clients request for resources. If one DC goes offline, other DCs can respond to the request resulting in no downtime.

Obviously, in the case of Active Directory Domain Controllers, you’d much prefer to have multiple DCs in your environment, instead of using one with vSphere HA.

Additionally, if you did have multiple domain controllers, you’d want to make sure they aren’t all placed on the same ESXi host. This is where we start to incorporate VM placement in to our solution.

VM Placement

When it comes to 3rd party solutions like mentioned above, we need to identify these workloads and factor them in to the design of the solution we are either implementing, maintaining, or improving.

Example of VM workloads used with VM Placement

A few examples of these workloads with their own load-balancing and availability technologies:

  • Microsoft Windows Active Directory Domain Controllers
  • Microsoft Windows Servers running DNS/DHCP Servers
  • Virtualized Active/Active or Active/Passive Firewall Appliances
  • VMware Horizon UAG (Unified Access Gateway) configured in HA mode
  • Other servers/services that have their own availability systems

As you can see, the applications all have their own special solution for availability, so we must insure the different “nodes” or “instances” are running on different ESXi hosts to avoid a host failure bringing down the entire solution.

Unless otherwise specified by the 3rd party vendor, I would recommend using VM/Host Rules in combination with vSphere DRS and HA.

Configuring VM Placement with VM/Host Rules

To configure these rules, follow the instructions below:

  1. Log on to your VMware vCenter Server
  2. Select a Cluster
  3. Click on the “Configure” tab, and then “VM/Host Rules”
    • Here you can Add/Edit/Delete VM Host Rules
  4. Click on “Add”, and give the rule a new name (Example: Domain Controllers)
  5. For “Type”, select “Separate Virtual Machines”
  6. Click “Add” and select your Domain Controllers and add them to the rule.

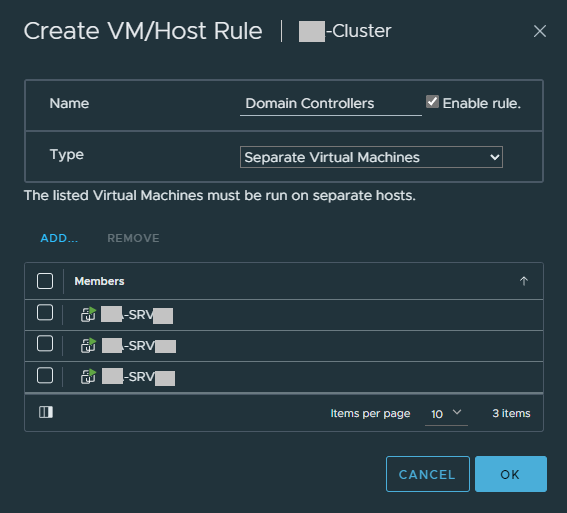

Screenshot rule creation for VM placement using VM Host Rules
Domain Controller VM Placement VM Host Rule

After you click “OK”, the rule should now be saved, and DRS will make sure these VMs are now running on separate hosts.

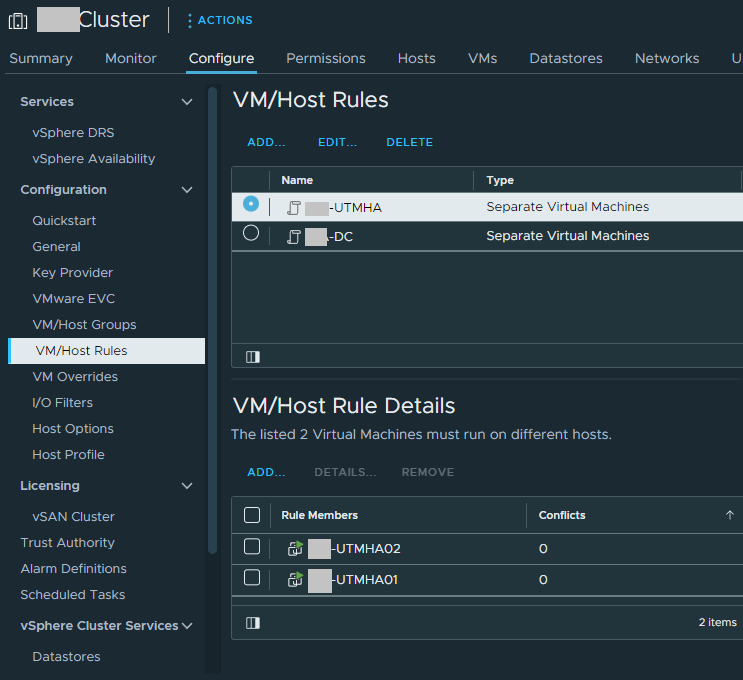

Below you can see another example of a configured system, separating 2 Active/Passive Firewall appliances.

VM placement and VM/Host Rules for Firewall appliances
VM/Host Rules for Firewall Appliances

As you can see, VM placement with VM/Host Rules is very easy to configure and deploy.

Additional Considerations

Note, if you implement these rules and do not have enough hosts to fullfill the requirements, the hosts may fail to be evacuated by DRS when placing in maintenance mode, or remediating with vLCM (Lifecycle Manager).

In this case, you’ll need to manually vMotion the VM’s to other hosts (to violate the rule) or shut some down.

ESXi 8.0 on HPE Proliant DL360p Gen8

 ESXi, HPE, VMware, vSphere  13 Responses »
Jul 242023

Picture of an DL360p Gen8 1U Rack Server with IO-PEX40152 Installed

A few months ago, you may have seen my post detailing my experience with ESXi 7.0 on HP Proliant DL360p Gen8 servers. I now have an update as I have successfully loaded ESXi 8.0 on HPE Proliant DL360p Gen8 servers, and want to share my experience.

It wasn’t as eventful as one would have expected, but I wanted to share what’s required, what works, and stability observations.

Please note, this is NOT supported and NOT recommended for production environments. Use the information at your own risk.

A special thank you goes out to William Lam and his post on Homelab considerations for vSphere 8, which provided me with the boot parameter required to allow legacy CPUs.

ESXi on the DL360p Gen8

With the release of vSphere 8.0 Update 1, and all the new features and functionality that come with the vSphere 8 release as a whole, I decided it was time to attempt to update my homelab.

In my setup, I have the following:

  • 2 x HPE Proliant DL360p Gen8 Servers
    • Dual Intel Xeon E5-2660v2 Processors in each server
    • USB and/or SD for booting ESXi
    • No other internal storage
    • NVIDIA A2 vGPU (for use with VMware Horizon)
  • External SAN iSCSI Storage

Since I have 2 servers, I decided to do a fresh install using the generic installer, and then use the HPE addon to install all the HPE addons, drivers, and software. I would perform these steps on one server at a time, continuing to the next if all went well.

I went ahead and documented the configuration of my servers beforehand, and had already had upgraded my VMware vCenter vCSA appliance from 7U3 to 8U1. Note, that you should always upgrade your vCenter Server first, and then your ESXi hosts.

To my surprise the install went very smooth (after enabling legacy CPUs in the installer) on one of the hosts, and after a few days with no stability issues, I then proceeded and upgraded the 2nd host.

I’ve been running with 100% for 25+ days without any issues.

The process – Installing ESXi 8.0

I used the following steps to install VMware vSphere ESXi 8 on my HP Proliant Gen8 Server:

  1. Download the Generic ESXi installer from VMware directly.
    1. Link: Download VMware vSphere
  2. Download the “HPE Custom Addon for ESXi 8.1”.
    1. Link: HPE Custom Addon for ESXi 8.0 U1 June 2023
    2. Other versions of the Addon are here: HPE Customized ESXi Image.
  3. Boot server with Generic ESXi installer media (CD or ISO)
    • IMPORTANT: Press “Shift + o” (Shift key, and letter “o”) to interrupt the ESXi boot loader, and add “AllowLegacyCPU=true” to the kernel boot parameters.
  4. Continue to install ESXi as normal.
    • You may see warnings about using a legacy CPU, you can ignore these.
  5. Complete initial configuration of ESXi host
  6. Mount NFS or iSCSI datastore.
  7. Copy HPE Custom Addon for ESXi zip file to datastore.
  8. Enable SSH on host (or use console).
  9. Place host in to maintenance mode.
  10. Run “esxcli software vib install -d /vmfs/volumes/datastore-name/folder-name/HPE-801.0.0.11.3.1.1-Jun2023-Addon-depot.zip” from the command line.
  11. The install will run and complete successfully.
  12. Restart your server as needed, you’ll now notice that not only were HPE drivers installed, but also agents like the Agentless management agent, and iLO integrations.

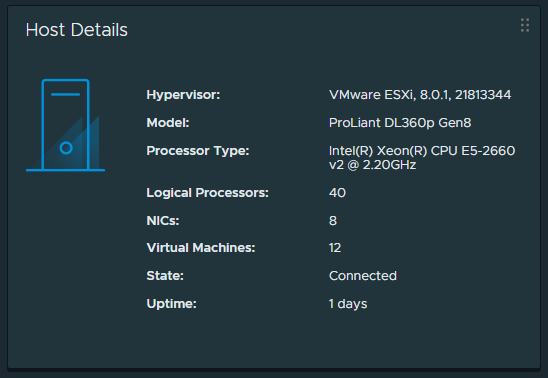

After that, everything was good to go… Here you can see version information from one of the ESXi hosts:

ESXi 8 on HPE Proliant DL360p Gen8
VMware ESXi version 8.0.1 Build 21813344 on HPE Proliant DL360p Gen8 Server

What works, and what doesn’t

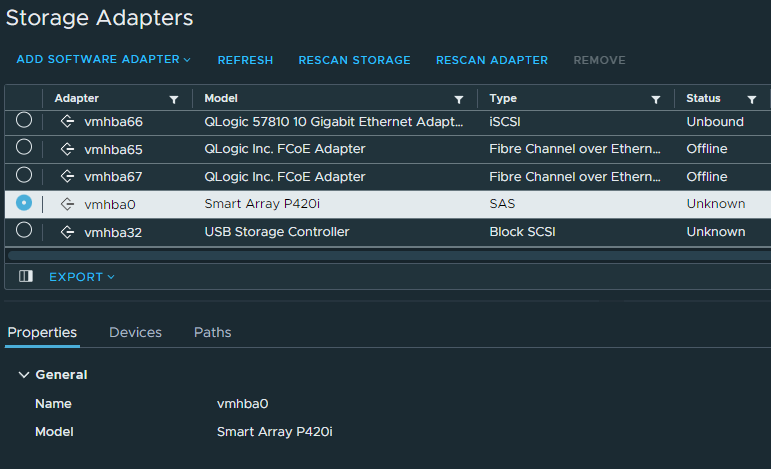

I was surprised to see that everything works, including the P420i embedded RAID controller. Please note that I am not using the RAID controller, so I have not performed extensive testing on it.

HPE P420i RAID Controller with VMware vSphere ESXi 8
HPE P420i RAID Controller with VMware vSphere ESXi 8

All Hardware health information is present, and ESXi is functioning as one would expect if running a supported version on the platform.

Additional Information

Note that with vSphere 8, VMware is deprecating vLCM baselines. Your focus should be to update your ESXi instances using cluster image based update images. You can incorporate vendor add-ons and components to create a customized image for deployment.

Hybrid Azure AD Join with Azure AD Connect for Non-Persistent VDI with VMware Horizon

 Azure AD, Omnissa Horizon, VDI, VMware  22 Responses »
Jul 232023

Azure AD SSO with Horizon

With the release of VMware Horizon 2303, VMware Horizon now supports Hybrid Azure AD Join with Azure AD Connect using Instant Clones and non-persistent VDI.

So what exactly does this mean? It means you can now use Azure SSO using PRT (Primary Refresh Token) to authenticate and access on-premise and cloud based applications and resources.

What else? It allows you to use conditional access!

What is Hybrid Azure AD Join, and why would we want to do it with Azure AD Connect?

Historically, it was a bit challenging when it came to Understanding Microsoft Azure AD SSO with VDI (click to read the post and/or see the video), and special considerations had to be made when an organization wished to implement SSO between their on-prem non-persistent VDI deployment and Azure AD.

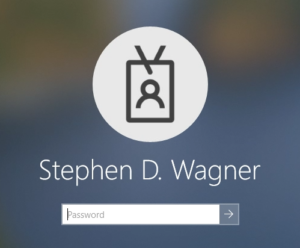

Screenshot of a Hybrid Azure AD Joined login
Hybrid Azure AD Joined Login

Azure AD SSO, the old way

The old way to accomplish this was to either implement Azure AD with ADFS, or use Seamless SSO. ADFS was bulky and annoying to manage, and Seamless SSO was actually intended to enable SSO on “downlevel devices” (older operating systems before Windows 10).

For customers without ADFS, I would always recommend using Seamless SSO to enable SSO on non-persistent VDI Instant Clones, until now!

Azure AD SSO, the new way with Azure AD Connect and Azure SSO PRTs

According to the release notes for VMware Horizon 2303:

Hybrid Azure Active Directory for SSO is now supported on instant clone desktop pools. See KB 89127 for details.

This means we can now enable and use Azure SSO with PRTs (Primary Refresh Tokens) using Azure AD Connect and non-persistent VDI Instant Clones.

Azure SSO with PRT and Non-Persistent VDI

This is actually a huge deal because not only does it allow us to use the preferred method for performing SSO with Azure, but it also allows us to start using fancy Azure features like conditional access!

Requirements for Hybrid Azure AD Join with non-persistent VDI and Azure AD Connect

In order to utilize Hybrid Join and PRTs with non-persistent VDI on Horizon, you’ll need the following:

  • VMware Horizon 2303 (or later)
  • Active Directory
  • Azure AD Connect (Implemented, Configured, and Functioning)
    • Azure AD Hybrid Domain Join must be enabled
    • OU and Object filtering must include the non-persistent computer objects and computer accounts
  • Create a VMware Horizon Non-Persistent Desktop Pool for Instant Clones
    • “Allow Reuse of Existing Computer Accounts” must be checked

When you configure this, you’ll notice that after provisioning a desktop pool (or pushing a new snapshot), that there may be a delay for PRTs to be issued. This is expected, however the PRT will be issued eventually, and subsequent desktops shouldn’t experience issues unless you have a limited number available.

*Please note: VMware still notes that ADFS is the preferred way for fast issuance of the PRT.

While VMware does recommend ADFS for performance when issuing PRTs, in my own testing I had no problems or complaints, however when deploying this in production I’d recommend that because of the PRT delay after deploying the pool or a new snapshot, to do this after hours or SSO will not function for some users who immediately get a new desktop.

Additional Considerations

Please note the following:

  • When switching from ADFS to Azure AD Connect, the sign-in process may change for users.
    • You must prepare the users for the change.
  • When using locally stored identifies and/or cached credentials, enabling Azure SSO may change the login process, or cause issues for users signing in.
    • You may have to delete saved credentials in the users persistent profile
    • You may have to adjust GPOs to account for Azure SSO
    • You may have to modify settings in your profile persistent solution
      • Example: “RoamIdentity” on FSLogix
  • I recommend testing before implementing
    • Test Environment
    • Test with new/blank user profiles
    • Test with existing users

If you’re coming from an environment that was previously using Seamless SSO for non-persistent VDI, you can create new test desktop pools that use newly created Active Directory OU containers and adjust the OU filtering appropriately to include the test OUs for synchronization to Azure AD with Azure AD Connect. This way you’re only syncing the test desktop pool, while allowing Seamless SSO to continue to function for existing desktop pools.

How to test Azure AD Hybrid Join, SSO, and PRT

To test the current status of Azure AD Hybrid Join, SSO, and PRT, you can use the following command:

dsregcmd /status

To check if the OS is Hybrid Domain joined, you’ll see the following:

+----------------------------------------------------------------------+
| Device State                                                         |
+----------------------------------------------------------------------+

             AzureAdJoined : YES
          EnterpriseJoined : NO
              DomainJoined : YES
                DomainName : DOMAIN

As you can see above, “AzureADJoined” is “YES”.

Further down the output, you’ll find information related to SSO and PRT Status:

+----------------------------------------------------------------------+
| SSO State                                                            |
+----------------------------------------------------------------------+

                AzureAdPrt : YES
      AzureAdPrtUpdateTime : 2023-07-23 19:46:19.000 UTC
      AzureAdPrtExpiryTime : 2023-08-06 19:46:18.000 UTC
       AzureAdPrtAuthority : https://login.microsoftonline.com/XXXXXXXX-XXXX-XXXXXXX
             EnterprisePrt : NO
    EnterprisePrtAuthority :
                 OnPremTgt : NO
                  CloudTgt : YES
         KerbTopLevelNames : XXXXXXXXXXXXX

Here we can see that “AzureAdPrt” is YES which means we have a valid Primary Refresh Token issued by Azure AD SSO because of the Hybrid Join.
